20-05 MR Imaging Strikes Roots

The news of Lauterbur's invention traveled slowly although he presented it at a number of scientific meetings between 1972 and 1975.

Lauterbur once stated: "European scientists, physicians, governments and industries moved more confidently and thoughtfully into this new area than did their American counterparts [⇒ Dawson]." Some people listened, understood, and reacted. It's a tale of international conferences. Here are some examples:


spaceholder 600 In April 1974, Lauterbur gave a talk at a conference in Raleigh, North Carolina. This conference was attended by Richard Ernst from Zurich (Figure 20-23), who realized that instead of Lauterbur's back-projection one could use switched magnetic field gradients in the time domain.

Figure 20-23: Richard Ernst.

This led to the 1975 publication, 'NMR Fourier Zeugmatography' by Anil Kumar, Dieter Welti, and Richard Ernst [⇒ Kumar], and to the universal re­con­struc­tion method for MR imaging today (Figure 20-24).

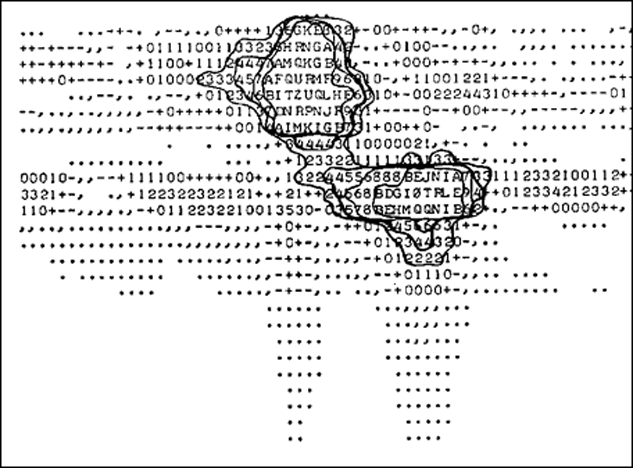

Figure 20-24:
One of the first 2D-FT MR images from the research group of Richard Ernst in Zurich, acquired by Anil Kumar in July 1974.


spaceholder 600 When Lauterbur presented his approach to NMR imaging at the In­ter­na­tio­nal Society of Magnetic Resonance (ISMAR) meeting in January 1974 in Bom­bay, Raymond Andrew, William Moore, and Waldo Hinshaw from the University of Nottingham, England, were in the audience and took note. As a result, Hin­shaw developed his own approach to MR imaging with their sensitive point me­thod [⇒ Hinshaw 1974; 1976].

At this time, several research groups in Nottingham worked in parallel on si­mi­lar topics. The first group comprised E. Raymond Andrew, Waldo S. Hinshaw, William S. Moore, Neil Holland, and Paul Bottomley, all of them major con­tri­bu­tors to the development of MR imaging. The second group included Peter Mans­field (Figure 20-25), Peter K. Grannell, Andrew Maudsley, Ian Pykett, and Peter Morris. They worked on studies of solid periodic objects, such as crystals.


spaceholder 600 At a Colloque Ampère conference in Cracow, Poland, in September 1973, Mansfield was told about Lauterbur's imaging method after he and his collaborator Peter K. Gran­nell had presented a one-dimensional interferogram of camphor/cardboard samples (Figure 20-26).

Figure 20-25: Peter Mansfield (1933-2017).

Figure 20-26:
Model of the one-dimensional lattice (cam­phor with cardboard spacers used for the experiment). Fourier cosine transforms of the transient response to a multiple pulse sequence from the layers of camphor.

(a) three layers, no magnetic field gradient;
(b) three layers, gradient of 0.77 G/cm;
(c) five layers, same gradient.

This is a linear measurement in a single dimension, not an image [⇒ Mansfield 1973].


For some time in 1974 a third, single-man research ‘team’ existed in Nottingham, consisting of Alan N. Garroway (Fi­gu­re 20-27).

Figure 20-27: Alan N. Garroway.

He applied weak radiofrequency pulses in the presence of a field gradient in order to achieve spatial selectivity. Next door, Peter Mansfield and his post­doc­to­ral students were developing a related method. Garroway later joined the Mans­field group. A month before Garroway and Mansfield submitted their first imaging article to Journal of Physics in 1974 [⇒ Garroway] they applied together for a first patent.

Unfortunately, their method was unsuitable for practical application because it suffered from rapid loss of signal; the problem and its solution were explained by David Hoult from Oxford [⇒ Hoult].

By 1975, Mansfield and Andrew A. Maudsley proposed a line tech­ni­que which, in 1977, led to the first image of in vivo human anatomy, a cross section through a finger. In 1978, Mansfield presented his first image through the abdomen [⇒ Mansfield 1976 a+b].


Echo-planar imaging (EPI), a real-time imaging tech­ni­que, had been proposed by Mansfield's group in 1977, and the first crude images were shown by Mansfield and Ian Pykett in the same year. Roger Ordidge (Figure 20-28) presented the first EPI movie in 1981.

Figure 20-28: Roger Ordidge.

The breakthrough of EPI came with manifold improvements in many aspects of the associated methodology and instrumentation – from gradient power supp­ly and gradient coil design to pulse sequence development, presented by Pykett and Rzedzian in 1987 [⇒ Pykett]. However, it remains a niche technology in cli­ni­cal MRI.


In 1977, Waldo Hinshaw (Figure 20-29), Paul Bottomley, and Neil Holland, succeeded with an image of the wrist
[⇒ Hinshaw 1977].

Figure 20-29: Waldo Hinshaw.


Hinshaw later went to Harvard and then joined the group at the Technicare company, at that time the most advanced scientific group with a commercial – and solid me­di­cal applications background.

More human thoracic and abdominal images by different groups and several novel techniques followed, and by 1978, Hugh Clow and Ian R. Young, working at the British company EMI, reported the first transverse NMR image through a hu­man head [⇒ Clow].


The group around John Mallard at the University of Aberdeen also performed trailblazing research work. James Hutchison, a physicist (Figure 20-30), Margaret A. Foster, a biologist, and later Bill Edelstein, and their colleagues built their own whole-body MR imag­ing machine and developed the spin-warp technique.

Figure 20-30: Jim Hutchison.


They published the first image through the body of a mouse in 1974 which was followed by a whole-body image in 1980 (Figure 20-31) [⇒ Hutchison; ⇒ Edelstein].


Figure 20-31:
(a) The first image of a whole mouse was obtained in Aberdeen, Scotland, in March 1974.
(b) The prototype whole-body MR machine in Aberdeen.


spaceholder 600 In the 1970s and 1980s Great Britain was a major con­tri­bu­tor to the de­ve­lop­ment of MRI equip­ment and soft­ware, but then a number of the researchers working in Britain went to the United Sta­tes. It was a major brain-drain for British universities, but there was little money in the British university system.

An excellent eyewitness report by some leading British researchers and scientists about the British work, issues relating to the support and impact of industrial research, interrelationships between manufacturers, government agencies and medical specialists in acquiring and evaluating new equipment, and devising safety and clinical criteria was given at a meeting at the Wellcome Institute for the History of Medicine, London, in 1996 [⇒ Christie].

Most of the British researchers stayed abroad, whereas many of the Continental Europeans who worked in the U.S.A. in the late 1970s and early 1980s returned to Europe. Some of the Europeans had performed quite impressive research in the Uni­ted Sta­tes.

spaceholder 600 Among them was Robert N. Muller who, in 1982, described off-re­so­nan­ce imag­ing, a technique later dubbed magnetization transfer imag­ing (Figures 20-32 and 20-33) [⇒ Muller 1983]. Peter A. Rinck et al. described the first in vivo fluorine lung images (Figures 20-32 and 20-33) [⇒ Rinck 1984].


Figure 20-32:
Peter A. Rinck (left; inside the coil) and Robert N. Muller (right).


Figure 20-33:
(a) Off-resonance imaging of a knee joint. (b) 19F ventilation imaging of a dog's lung; coronal and transverse images.


Much of the research done at this time was not published, or only presented as abstracts because of the extremely rapid progress in the different research groups.


spaceholder 600In vivo MR Spectroscopy. Actual in vivo NMR spectroscopy took off in Oxford from 1974, with the group of Rex E. Richards and George K. Radda. Among others, David Hoult and David G. Gadian belonged to this group [more details can be found at ⇒ Christie].
